New loudspeaker station designs and a plug and play Tecpro
to RTS system interface are among the products being given their UK debut on
stand 85 at the ABTT Theatre Show.
 |
| Tecpro LS352 Loudspeaker Station, Dual Circuit, Desk Top |
 |
| Tecpro SC931 Tecpro to Tecpro System Combiner |
 |
| Tecpro SI921 Tecpro to RTS System Interface |
Three new loudspeaker stations will be on show including
desktop, wall and rack mounting versions. They provide local monitoring of
intercom circuits without the need for headphones, with contribution to the
conversation made possible via the built-in microphone. Feedback cancellation
circuitry helps avoid acoustic howl-round when speaker and mic are operating
simultaneously. If sound spillage is an issue, plugging in a headset will
automatically mute the loudspeaker. All new stations feature “remote mic kill”
circuitry to help keep intercom lines free of unwanted noise.
Linking a touring intercom system with a venue’s permanent
installed intercom can cause tempers to get severely frayed. Two new plug and
play combiner units provide a simple and elegant solution for joining two
independent Tecpro wired intercom systems together or a Tecpro and RTS TW
intercom without compromising the performance of either system. Both combiner
units are compatible with earlier Tecpro designs.
The SI921 Tecpro to RTS system interface was designed to
combine a Tecpro wired intercom with an RTS TW system. Traditionally, linking
these technically incompatible systems involved employing two-four wire
adapters which were seldom straightforward to set up. The new SI921 requires no
set up, automatically adjusting for the different system audio levels and
allowing ‘Call Alert’ and ‘Remote Mic Kill’ control signals to pass unhindered
between the two independent intercom ranges.

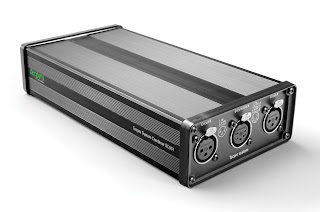

The SC931 system combiner was developed to link two
independent Tecpro wired intercom systems together. It allows both the audio
and Tecpro control signals to pass directly between the two linked intercoms
while keeping both 24V DC power supplies separate and independent.
More details at: http://www.canford.co.uk/
